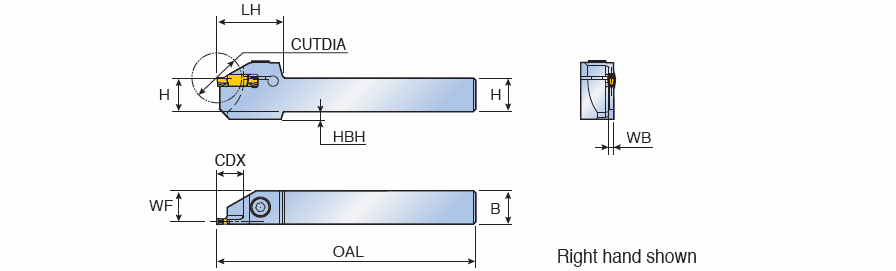

| Cutting Diameter (DC) | 40 mm | Overall Length (OAL) | 125 mm |
| Cutting Depth Maximum (CDX) | 15 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Tools for Swiss Machines | |
| Shank Height (H) | 12 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Measurement Type | Metric |
| Functional Width (WF) | 11.5 mm | Unit | M |
| Head Length (LH) | 32 mm |
Product Features
| FamilyDesc | Reinforced external holders for turning, grooving & parting | FamilyName | TTER/L-D |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
PackageWeight
0.1700
Name
Groove/Turn Indexable Holders
FamilyName
TTER/L-D
BrandName
Taegutec
