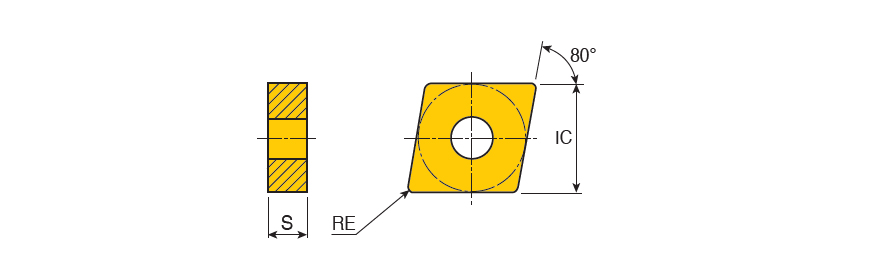

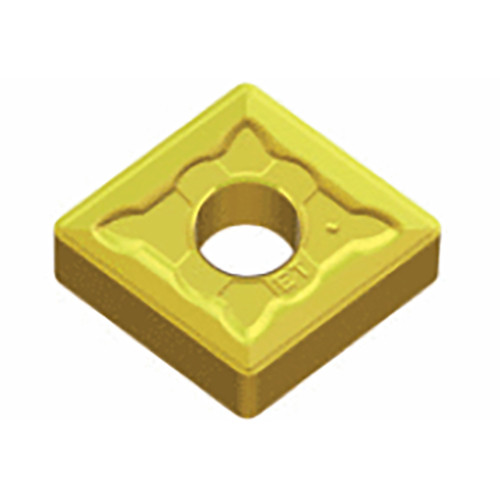

CNMG 120408 ET TT9080
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9080 |
| Application | | Ext 75° App 100° Diamond | Ext 75° App Face 100° Diamond | Ext 95° App 80°Diamond | Inserts | Int 95° App 80° Diamond | | Min D.O.C. | 1.2 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 5.5 mm |
| Cutting Edge Length (L) | 12.9 mm | Min. Turning Feed (ft(min)) | 0.17 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.55 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
Product Features
| FamilyDesc | Negative 80° Rhombic inserts for rough machining of exotic materials | FamilyName | CNMG-ET |
| COO | S.KOREA | BrandName | TaeguTec |
Shipping Info
PackageWeight
0.0105
Name
Turning Indexable Inserts
FamilyName
CNMG-ET
BrandName
TaeguTec
